Neutron Capture – Radiative Capture

The neutron capture is one of the possible absorption reactions that may occur. Capture reactions result in the loss of a neutron coupled with the production of one or more gamma rays. This capture reaction is also referred to as a radiative capture or (n, γ) reaction, and its cross-section is denoted by σγ. In fact, for non-fissionable nuclei, it is the only possible absorption reaction.

The radiative capture is a reaction in which the incident neutron is completely absorbed, and the compound nucleus is formed. The compound nucleus then decays to its ground state by gamma emission. This process can occur at all incident neutron energies, but the probability of the interaction strongly depends on the incident neutron energy and the target energy (temperature). In fact, the energy in the center-of-mass system determines this probability.

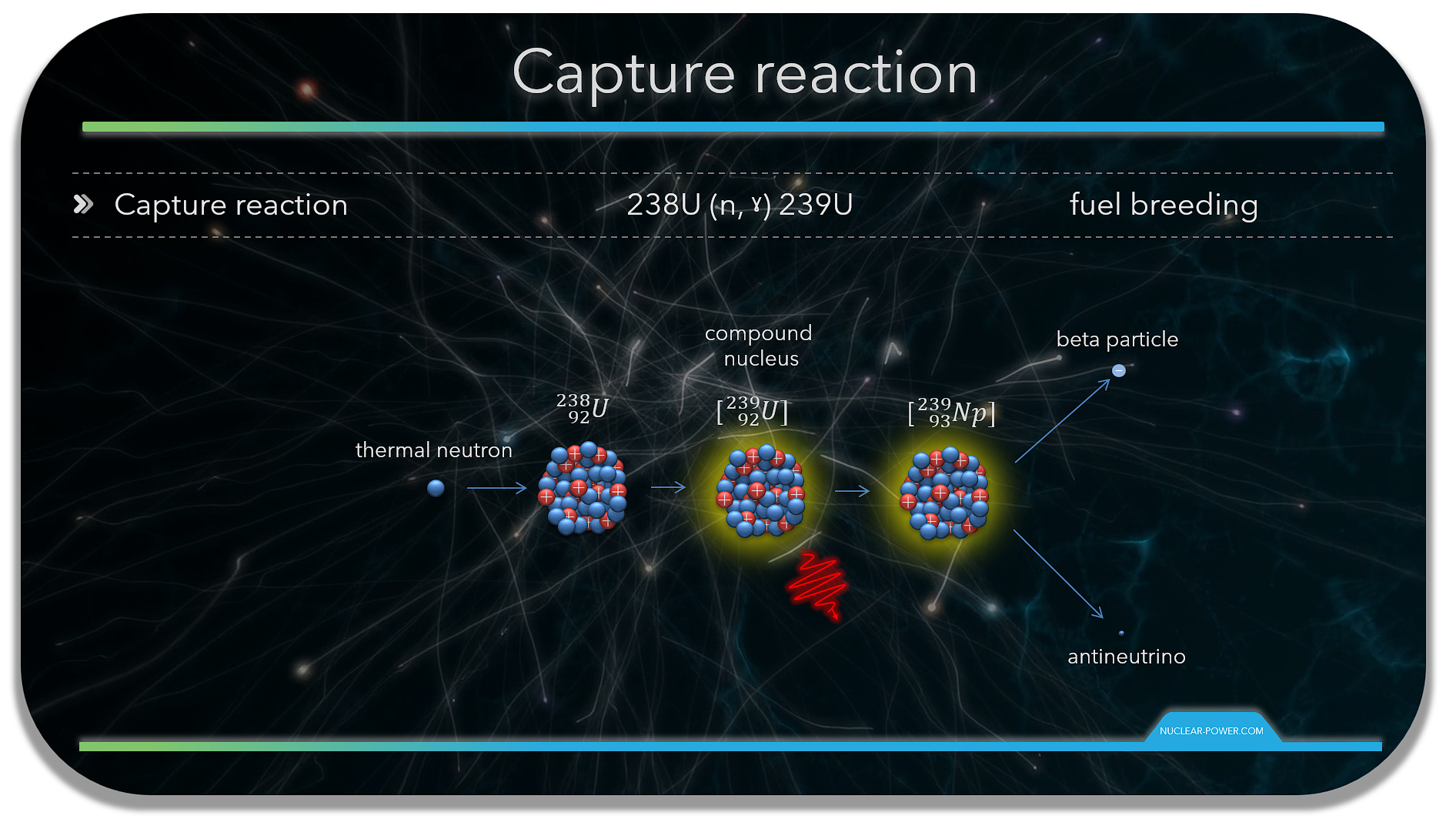

capture reaction - nuclear

Neutron Capture at Small Neutron Flux

It must be noted we have to distinguish between radiative captures at small neutron flux and the high neutron flux. As in a nuclear reactor, the compound nucleus has time to decay between two neutron captures at a small neutron flux. The most usual capture reactions that occur inside a power reactor are below:

Neutron capture reactions which are of importance in power reactors.
Neutron capture reactions are of importance in power reactors.



Neutron Capture at High Neutron Flux

At very high flux, atomic nuclei do not necessarily have enough time to decay via beta particle emission between neutron captures. This happens inside stars, where a really tremendous flux may be reached. As a result of many capture reactions without beta decay, the mass number rises by a large amount, while the atomic number stays the same. Only afterward, the highly unstable nuclei decay via many β− decays to stabilize themselves.

Since the process entails a succession of many rapid neutron captures, it is called the r-process. The r-process is a nucleosynthesis process that occurs in core-collapse supernovae and is responsible for creating approximately half of the neutron-rich atomic nuclei heavier than iron.Uranium 238. Neutron absorption and scattering. Comparison of cross-sections.Uranium 238. Comparison of cross-sections.Source: JANIS (Java-based Nuclear Data Information Software); The JEFF-3.1.1 Nuclear Data LibraryXenon - 135. Neutron absorption and scattering. Comparison of cross-sections.Xenon – 135. Neutron absorption and scattering. Comparison of cross-sections.Source: JANIS (Java-based Nuclear Data Information Software); The JEFF-3.1.1 Nuclear Data LibraryHydrogen. Neutron absorption and scattering. Comparison of cross-sections.Hydrogen. Neutron absorption and scattering. Comparison of cross-sections.Source: JANIS (Java-based Nuclear Data Information Software); The JEFF-3.1.1 Nuclear Data LibraryGadolinium 155 and 157. Comparison of radiative capture cross-sections.Gadolinium 155 and 157. Comparison of radiative capture cross-sections.
Source: JANIS (Java-based Nuclear Data Information Software); The JEFF-3.1.1 Nuclear Data Library

Neutron Capture and Fuel Breeding

In reactor calculations, the neutron capture reaction is as important as the fission reaction. Its impact on the neutron balance is evident. But this reaction is also of importance from another point of view. Fissionable nuclei or even fissile nuclei may capture a neutron. This capture leads to the formation of unstable nuclei with higher neutron numbers. Such unstable nuclei undergo a nuclear decay, which may lead to the formation of other fissile nuclei. This process is also called nuclear transmutation and is responsible for new fuel breeding in nuclear reactors.

Plutonium 239 breeding
 n+_{92}^{238}\textrm{U} {\rightarrow} _{92}^{239}\textrm{U}+\gamma \rightarrow _{93}^{239}\textrm{Np} \rightarrow _{94}^{239}\textrm{Pu}

Neutron capture may also be used to create fissile 239Pu from 238U, the dominant constituent of naturally occurring uranium (99.28%). Absorption of a neutron in the 238U nucleus yields 239U. The half-life of 239U is approximately 23.5 minutes. 239decays (negative beta decay) to 239Np (neptunium), whose half-life is 2.36 days. 239Np decays (negative beta decay)  to 239Pu.

Uranium 233 breeding
n+_{90}^{232}\textrm{Th} {\rightarrow} _{90}^{232}\textrm{Th}+\gamma \rightarrow _{91}^{233}\textrm{Pa} \rightarrow _{92}^{233}\textrm{U}

232Th is the predominant isotope of natural thorium. If this fertile material is loaded in the nuclear reactor, the nuclei of 232Th absorb a neutron and become nuclei of 233Th. The half-life of 233Th is approximately 21.8 minutes. 233Th decays (negative beta decay) to 233Pa (protactinium), whose half-life is 26.97 days. 233Pa decays (negative beta decay)  to 233U, which is a very good fissile material. On the other hand, proposed reactor designs must physically isolate the protactinium from further neutron capture before beta decay occurs.

Radiative Capture Cross-section

The radiative capture cross-section represents the likelihood of a neutron radiative capture as σγ. As usual, the cross-section can be divided into three regions according to the incident neutron energy.

  • 1/v Region
  • Resonance Region
  • Fast Neutrons Region

1/v Region

In the common case, the cross-section is usually much larger at low energies than at high energies. For thermal neutrons (in 1/v region), radiative capture cross-sections also increase as the neutron’s velocity (kinetic energy) decreases. Therefore the 1/v Law can determine the shift in capture cross-section if the neutron is in equilibrium with a surrounding medium. This phenomenon is because the nuclear force between the target nucleus and the neutron has a longer time to interact.

Resonance Region

The largest cross-sections are usually at neutron energies that lead to long-lived states of the compound nucleus. The compound nuclei of these certain energies are called nuclear resonances, and their formation is typical in the resonance region. The widths of the resonances increase in general with increasing energies. At higher energies, the widths may reach the order of the distances between resonances, and then no resonances can be observed. The narrowest resonances are usually compound states of heavy nuclei (such as fissionable nuclei).

Since the mode of decay of the compound nucleus does not depend on the way the compound nucleus was formed, the nucleus sometimes emits a gamma-ray (radiative capture) or sometimes emits a neutron (scattering). To understand how a nucleus will stabilize itself, we have to understand the behavior of the compound nucleus.

The compound nucleus emits a neutron only after one neutron obtains energy in collision with another nucleon greater than its binding energy in the nucleus. It has some delay because the excitation energy of the compound nucleus is divided among several nucleons. The average time that elapses before a neutron can be emitted is much longer for nuclei with many nucleons than when only a few nucleons are involved. It is a consequence of sharing the excitation energy among a large number of nucleons.

This is why the radiative capture is comparatively unimportant in light nuclei but becomes increasingly important in heavier nuclei.

The lifetime of a compound nucleus is inversely proportional to its total width. Narrow resonances, therefore, correspond to capture, while the wider resonances are due to scattering.Table of cross-sections

Table of cross-sections.

Resonance region - Compound NucleusRadiative Capture Cross-section – the region of resonances of 238U nuclei.
Source: JANIS (Java-based Nuclear Data Information Software); The JEFF-3.1.1 Nuclear Data LibraryCompound state - resonance
ground state compound nucleus - excitationEnergy levels of the compound state. For neutron absorption reaction on 238U, the first resonance E1 corresponds to the excitation energy of 6.67eV. E0 is a base state of 239U.radiative capture to elastic scattering cross-sections-Radiative capture and elastic scattering cross-sections in 16O and 238U.

Example:

Source: R. Lamarsh, Introduction to Nuclear Reactor Theory, 2nd ed., Addison-Wesley, Reading, MA (1983).

The first resonance in 238U at 6.67 eV, which corresponds to the first virtual level in 239U, has a total width of only 0.027 eV, and the mean life of this state is 2.4×10-14s. By contrast, the resonance observed at 443 keV in 16O, which corresponds to the first virtual state in 17O, has a total width of 41 keV, giving a mean lifetime of 1.5×10-21s. Thus it is highly likely that the compound state in 239U decays at least to some extent by gamma-ray emission, while the compound state in 17O must decay primarily by nucleon emission. The 443-keV resonance in 16O is clearly a scattering resonance, whereas the 6.67-eV resonance in 238U is in part a capture resonance.

Doppler Broadening

In general, Doppler broadening is the broadening of spectral lines due to the Doppler effect caused by a distribution of kinetic energies of molecules or atoms. In reactor physics, a particular case of this phenomenon is the thermal Doppler broadening of resonances caused by the thermal motion of the target particle in the nuclear fuel.

Doppler effect
Doppler effect improves reactor stability. Broadened resonance (heating of a fuel) results in a higher probability of absorption, thus cause negative reactivity insertion (reduction of reactor power).

The Doppler broadening of resonances is a very important phenomenon, which improves reactor stability. The prompt temperature coefficient of most thermal reactors is negative, owing to a nuclear Doppler effect. Although the absorption cross-section depends significantly on incident neutron energy, the shape of the cross-section curve also depends on the target temperature.

Nuclei are located in atoms that are themselves in continual motion owing to their thermal energy. As a result of these thermal motions, neutrons impinging on a target appear to the nuclei in the target to have a continuous spread in energy. This, in turn, affects the observed shape of resonance. The resonance becomes shorter and wider than when the nuclei are at rest.

Although the shape of a resonance changes with temperature, the total area under the resonance remains essentially constant. But this does not imply constant neutron absorption. Despite the constant area under resonance, a resonance integral, which determines the absorption, increases with increasing target temperature. This, of course, decreases coefficient k (negative reactivity is inserted).

Fast Neutrons Region

The radiative capture cross-section at energies above the resonance region drops rapidly to very small values. This rapid drop is caused by the compound nucleus, which is formed in more highly excited states. In these highly excited states, it is more likely that one neutron obtains energy in collision with another nucleon greater than its binding energy in the nucleus. The neutron emission becomes dominant, and gamma decay becomes less important. Moreover, at high energies, the inelastic scattering and (n,2n) reaction are highly probable at the expense of both elastic scattering and radiative capture.
